Aluminum Honeycomb Panels are utilized in a wide range of industries, including shipbuilding, construction, railways, interior design, cabins, elevators, clean rooms, and ventilated façades. At HSB adhesive, the core of manufacturing high-performance, sustainable panels lies in the adhesive that bonds them.
HSB initially specialized in the production of aluminum honeycomb panels adhesives and over time mastered the entire production technology of these panels. With our deep expertise, we provide fully customizable honeycomb panel solutions according to our customers’ specifications, ensuring strength, durability and sustainability. HSB is committed to providing world-class aluminum honeycomb panels for a variety of applications around the world.

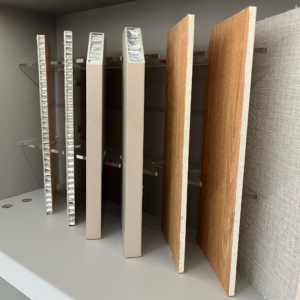

HSB’s aluminum honeycomb panel is a high-performance panel with both skins and core made entirely of aluminum. This panel offers outstanding mechanical properties, especially where high tensile strength is required at a cost-effective rate for use in mild environmental conditions. Our panels are available in various finishes, including untreated, primed, painted, or treated with SurTec 650. A wide range of RAL colors can be provided, subject to quantity and lead time requirements.
HSB’s aluminum honeycomb panels can be edged, shaped, or perforated according to the customer’s specifications, ensuring versatility for various applications. As the panel is composed of 95% aluminum, it meets stringent fire resistance standards, making it suitable for many industries. For projects requiring certified fire resistance, we offer our specialized HSB aluminum honeycomb panel FR.
A – ALUMINIUM SKINS
Thickness mm: 0,3 – 0,8 – 1 (standard)
Thickness customizable
C – CORE IN ALUMINIUM HONEYCOMB
Aluminium honeycomb (Alloy series 3000*)
with hexagonal cells
Diameter: Ø6mm, Ø8mm, Ø10mm, Ø12mm
Thickness Foil: from 30 to 80 microns
* To Aluminium alloy series 3000 belong: Aluminium alloy 3003, Aluminium alloy 3005, Aluminium alloy 3103, Aluminium alloy 3104.
HSB’s Aluminum Honeycomb panels can be machined using a variety of equipment, ranging from standard joinery saws to advanced CNC machines. We offer a range of processing services, including drilling, edge banding, and riveting, to meet specific project requirements.
To maintain the quality and performance of our panels, it is essential to follow proper storage guidelines. Key factors that can affect panel storage include:
Special attention should be given to the protective films, as prolonged exposure to environmental elements can make them difficult to remove.
Our panels are easy to clean and degrease, but we advise against using acidic or abrasive cleaning agents, as they may damage the surface and compromise the panel’s aesthetic appearance. Proper care will help maintain the durability and visual appeal of the product.
HSB’s Aluminum Honeycomb panels are an environmentally friendly solution, being 95% recyclable due to their high aluminum content. The aluminum can be melted down and reused multiple times without compromising quality, making our panels a sustainable choice. Additionally, the adhesives used in our honeycomb panels are non-toxic and eco-friendly, further emphasizing our commitment to providing products that deliver superior performance while minimizing environmental impact. HSB is dedicated to supporting a greener, safer future through our sustainable materials and practices.
| Technical data sheet for standard panels (dimensions, materials and special finishes on request) | |||||||
|---|---|---|---|---|---|---|---|
| panel size mm | standard 1240 x 2500 / 1240 x 3000 / 1400 x 3000; On request up to 2000 x 7000 | ||||||
| thickness’ tolerance mm | ± 0.3 | ||||||
| dimension’s tolerance mm | ± 30 | ||||||
| planarity *** mm/m | +/-1 | ||||||
| skins’ thickness mm | 从 0.3 到 3.0 | ||||||
| skin alluminium alloy | 1000 series, 3000 series, 5000 series | ||||||
| honeycomb alluminium alloy | 3000 series, 5000 series | ||||||
| thickness of honeycomb foil μm | 50 and 70 | ||||||
| diameter of honeycomb Ø = mm | from 3 to 19 | ||||||
| honeycomb density Kg/m³ | from 20 to 163 | ||||||
| adhesive | 2K PU adhesive/thermoplastic film/ epoxy film/ | ||||||
| skin characteristics | two-components epoxy adhesive | ||||||
| type panel (some examples) - Panel Thickness mm | 6 | 10 | 15 | 10 | 15 | 20 | 25 |
| type panel (some examples) - Skin Thickness mm | 0,5 + 0,5 | 1,0 + 1,0 | |||||
| panel weight ‡ Kg/m2 | 3,8 | 4,0 | 4,3 | 6,7 | 7,0 | 7,3 | 7,6 |
| compressive stabilised strength MPa ** ‡ ASTM C 365-365 M Mpa | 2,9 | ||||||
| maximum load ** ‡ ASTM C 393 † N | 190 | 340 | 520 | 600 | 1.000 | 1.350 | 1.700 |
| deflection at maximum load ‡ ASTM C 393 † mm | 14 | 8 | 6 | 8 | 6 | 4 | 3 |
| skins E Elastic Modulus Mpa | 68.000 - 70.000 | ||||||
| moment of inertia I ** mm4/m | 7.600 | 22.000 | 52.000 | 40.000 | 98.000 | 181.000 | 288.000 |
| average resistance to peeling ** ‡ ASTM D1781-98 (2012) | > 280 N/76 mm or 40 Nmm/mm | ||||||
| maximum service temperature ** °C | - 40 / + 60; on request + 80 / + 100 / + 150 | ||||||
| thermal expansion coefficient ** °C-1 | 2,3 x 10-5 | ||||||
** Tested by Internal Laboratory
*** Approximate value
† Sample dimension with 4 support points (L, W) 540x50mm;
distance among the lower points 500mm, distance among the upper points 250mm
‡ Values for a panel with a honeycomb core of Ø6 56kg/m3 (Ø 1/4”)
