Introduction
Polyurethane adhesives play a key role in modern manufacturing, providing superior versatility and strength in various fields. Whether in the automotive industry or the construction industry, polyurethane adhesives are used to fix under high pressure, but in each industry, the gluing tools used for polyurethane adhesives are different. Therefore, this article will introduce in detail the types of polyurethane adhesive gluing methods, as well as their advantages and disadvantages, Best Practices for Superior Adhesion.
Understanding Polyurethane Adhesives
Polyurethane adhesives are renowned for their robust chemical structure, which is primarily composed of polymers linked by urethane or carbamate groups.
Polyurethane adhesives are divided into two main types: Thermosetting polyurethanes and thermoplastic polyurethanes.Thermosetting polyurethanes undergo a chemical reaction during the curing process, forming a permanent, inflexible bond that is highly resistant to heat and chemicals. In contrast, thermoplastic polyurethanes do not set in a permanent shape and can be reheated and remolded, providing versatility for applications requiring repeated adjustments or disassembly.
Key properties of polyurethane adhesives – flexibility, durability and environmental resistance.
- Flexibility – ensures that polyurethane adhesives maintain a strong bond even when subjected to mechanical stress or vibration, such as in automotive components or building structures facing dynamic loads.
- Durability – enables the product to maintain adhesive strength throughout its service life, especially in harsh environmental conditions.
- Environmental resistance – withstands moisture, UV radiation and other weather-related challenges.
6 Ways To Polyurethane Adhesives Coating Method

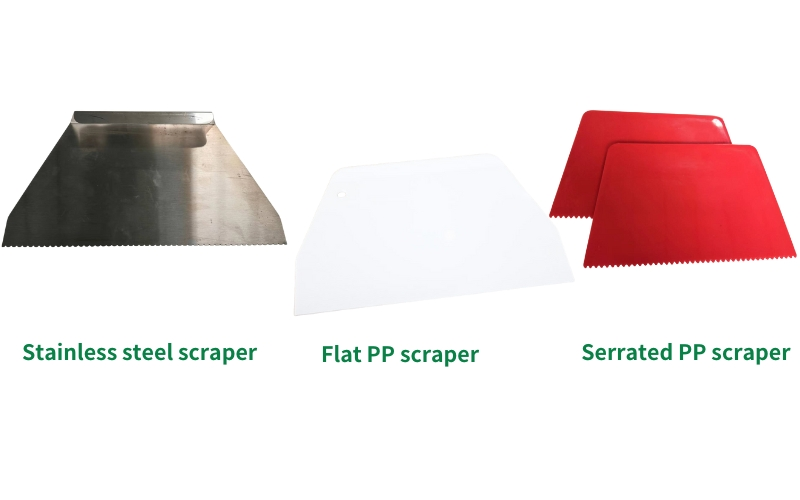

Manual Glue Scraping
Manual Glue Scraping can be divided into: flat PP scraper, serrated PP scraper, stainless steel scraper, each with different advantages and disadvantages.
-
Flat PP scraper: Made of polypropylene, a plastic with good chemical resistance and flexibility. Best used on flat surfaces that require a smooth and even layer of adhesive. The flat design allows for even application, reduces bubbles and ensures consistent bond strength across the surface.
-
Serrated PP scraper: Also made of polypropylene, with a serrated edge. The grooves are designed to create grooves in the adhesive, which helps eliminate air pockets and increases the bonding surface area. Especially useful when a stronger application of adhesive is required.
-
Stainless steel scraper: The stainless steel scraper is the tool of choice for harder or rougher surfaces that may wear down plastic tools. It allows for greater pressure to be applied during application and is used when a thicker or more durable adhesive is required.
Advantages:
—Manual glue scraping allows you to precisely control the amount and distribution of adhesive. It is not only inexpensive and easy to maintain, but also versatile. You can choose the right tool according to the specific needs of the substrate and adhesive type.
Disadvantages:
—It is very demanding on the operator. If you are not careful, inconsistent pressure or angle will lead to poor adhesion. It is also slow and not suitable for large-scale or fast production needs.
Best Practices and Tips:
——Maintain a consistent angle and pressure: Keep the scraper at a consistent angle, usually between 30 and 45 degrees, and apply even pressure to smoothly apply the adhesive to the surface.
——Choose the right tool: Choose a scraper based on the surface and adhesive type. For rough surfaces or when air entrapment is a concern, use a serrated scraper.
——Clean regularly: Adhesive buildup on the scraper will cause uneven application. Regularly cleaning the tool during use will maintain its effectiveness and extend its life.
——Check as you go: Regularly check the consistency and coverage of the applied adhesive. It is easier to make a quick correction during the application process than to repair the hardened adhesive later.
Hand-Held Gluer
The hand-held gluer is a hand-held tool for evenly applying adhesives, and is widely used in packaging, printing, woodworking, and flooring.
The working principle is to pour the adhesive into the reservoir of the roller gluer or soak the roller directly. Then, by manually rolling the roller gluer, the adhesive is evenly applied to the target surface. The roller is usually made of durable materials such as rubber or foam, which can hold the appropriate amount of adhesive and ensure even coating. You can adjust the thickness of the adhesive application by controlling the pressure and rolling speed of the roller. The hand-held gluer has a simple but powerful design, can effectively cover large areas of surface, and is more economical and environmentally friendly than brush or spray methods.
Advantages:
——The hand-held gluer has a simple design, is easy to use, and can accurately control the amount and location of adhesive, which is very suitable for delicate work or small area operations.
Disadvantages:
——It has limited mobility and requires regular cleaning and maintenance, which increases equipment costs and workload.
Tips for use:
——Make sure both the surfaces to be bonded and the hand-held gluer are clean and dry.
——Test the adhesive flow on a scrap piece before applying it to the final surface. This helps adjust the speed and amount of adhesive dispensed to prevent waste or insufficient coating.
——Hold the hand-held gluer at a steady angle and maintain a consistent speed as you move the tool along the surface.
Automatic Roller Glue Machine
Automatic roller glue machine is a specialized equipment used to apply a consistent and even layer of adhesive over a wide surface. The machine usually has a series of rollers through which the substrate is fed. The adhesive is stored in a container and applied to the substrate by a set of precision rollers to ensure an even distribution.
Working Principle:
The core of the Automatic roller glue machine consists of one or more application rollers that are coated with adhesive from the container. As the material passes through these rollers, they are evenly coated with glue. The amount of adhesive applied can be adjusted according to the requirements. These machines are designed to handle various types of adhesives and can handle a wide range of material widths and thicknesses, making them very versatile.
Advantages:
1 Automatic roller applicators provide consistent adhesive application, are efficient, and are well suited for large-scale production applications.
2 Process materials faster than manual or handheld methods, greatly speeding up production time.
3 High-quality coating results with low equipment investment.
Disadvantages:
Not suitable for smaller operations, they are not as flexible as manual processes when applying adhesive to irregularly shaped objects or small target areas.
Best Practices and Tips
——Regularly check and calibrate the machine to ensure that the adhesive is evenly applied to all materials. Adjust the rollers and adhesive flow as needed.
——Keep the machine clean, especially the rollers and adhesive reservoir.
——Perform routine maintenance checks regularly to identify and fix any mechanical problems before they cause failures.
——Ensure that the materials to be bonded are properly handled and prepared before entering the machine. They should be free of dust, moisture, and any other contaminants to ensure the best possible bonding.

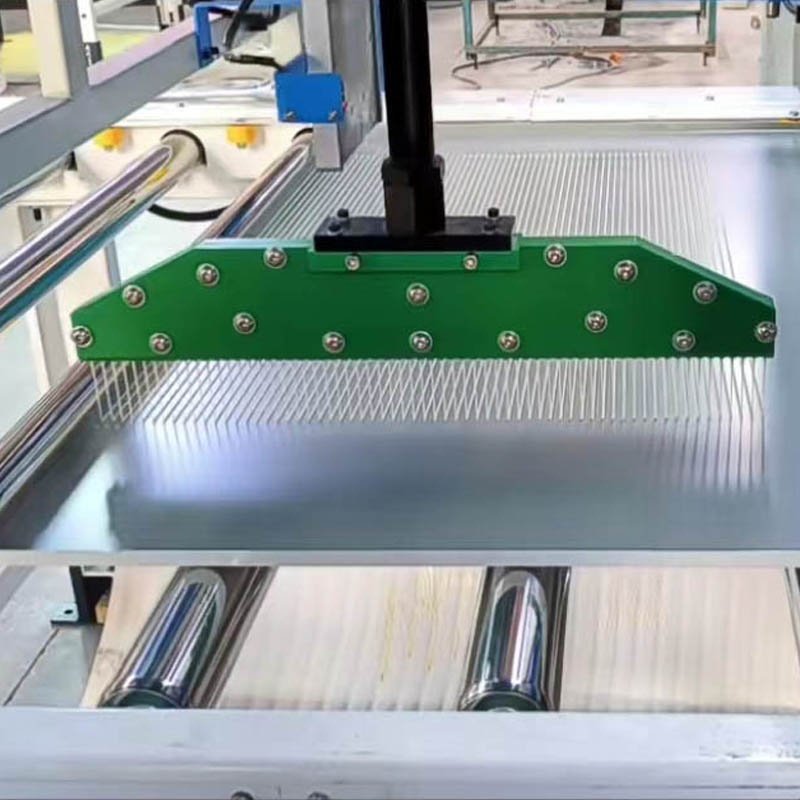

Automatic Glue Curtain Coater
The automatic glue curtain coater is a highly advanced machine used for industrial finishing of materials such as wood, metal and other substrates. It continuously applies a curtain of glue to the surface of the material passing underneath. The machine’s precisely controlled pump and nozzle system forms a uniform curtain of glue, ensuring even distribution and consistent thickness.
How it works
The curtain coating technology uses a pump and nozzle system to form a seamless curtain of glue. The material being coated moves under the curtain at a steady speed. The height and speed of the conveyor belt can be adjusted to match the viscosity of the glue and the desired coating thickness. This method can quickly cover large flat surfaces with an even layer of glue.
Advantages:
- Uniform Application
- High Efficiency，Reduce usage time
- More precise control over the volume of glue used leads to less wastage.
- Flexibility
Disadvantages:
- Large upfront investment, not suitable for smaller volume applications.
- Requires regular cleaning and maintenance, increasing operating costs.
Best Practices and Tips:
——Make sure the machine is calibrated correctly, including the alignment of the curtains, the speed of the conveyor belt, and the viscosity of the glue.
——Clean the nozzle regularly and check the pump to prevent clogging and ensure consistent glue flow.
——Keep the environment around the coater controlled, especially temperature and humidity.

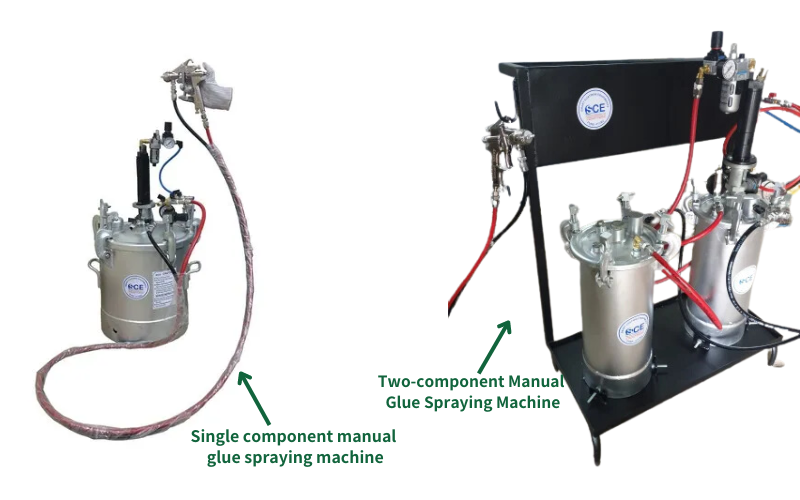

Glue Spraying Machine
Glue spraying machine is a kind of precision equipment, which can be divided into manual glue spraying machine and automatic glue spraying machine, used to spray fine adhesive mist onto various surfaces. It is particularly useful in industrial environments, because industrial environments need to quickly and evenly spray adhesive onto large or complex surfaces.
How It Works
Glue spraying machines use a system that pumps adhesive from a reservoir through a hose to a nozzle, which atomizes the glue into fine droplets. The mist is then sprayed onto the surface to be coated. The machine can be adjusted to control the flow rate and spray pattern of the adhesive.
Advantages:
- Speed and efficiency, able to quickly cover large areas, making the production process significantly faster.
- Fine mist ensures a uniform and even layer of adhesive.
- Versatility, suitable for a variety of adhesive types and viscosities.
- Spray systems generally provide better control over the amount of adhesive used.
Disadvantages:
- Equipment cost, requires regular cleaning and maintenance to prevent nozzle clogging.
- Tends to spray adhesive outside the target area, resulting in material waste.
Tips for Use
——First make sure the machine is properly calibrated. Adjust the nozzle and spray pattern to suit the adhesive type and surface area.
——Maintain a steady hand or machine speed during application.
——To minimize overspray, use masking tape or a physical barrier to protect areas that should not receive adhesive.
——Clean the nozzle and inspect the hose and pump regularly.
Glue Dispenser
There are many types of dispensers, including Manual dispensing machine and Automatic dispensing machine.

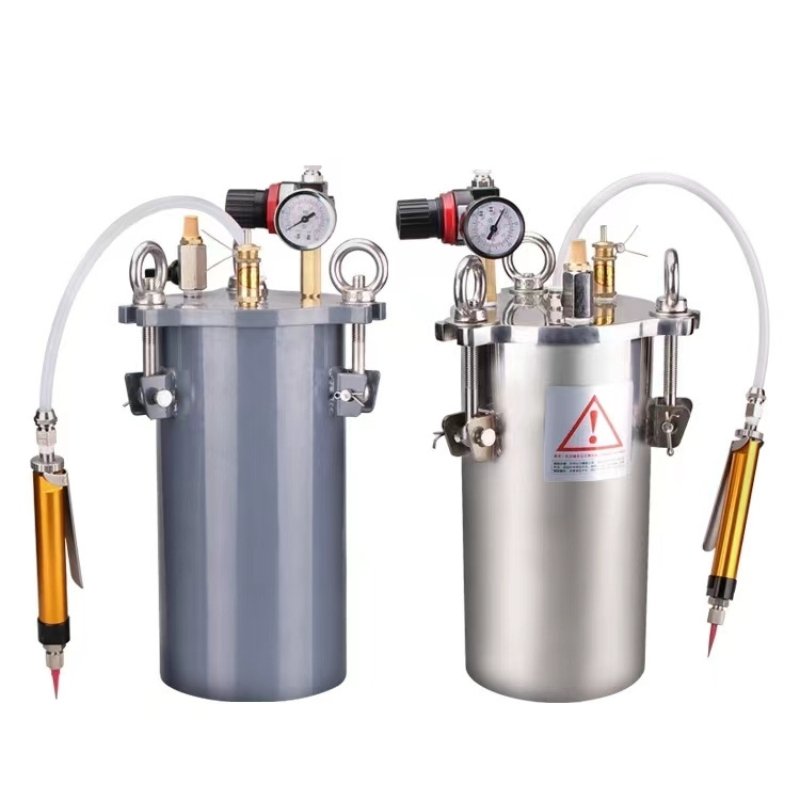

Manual dispensing machine: Require manual application of pressure to dispense adhesive. Usually used for light assembly work, crafts, etc.

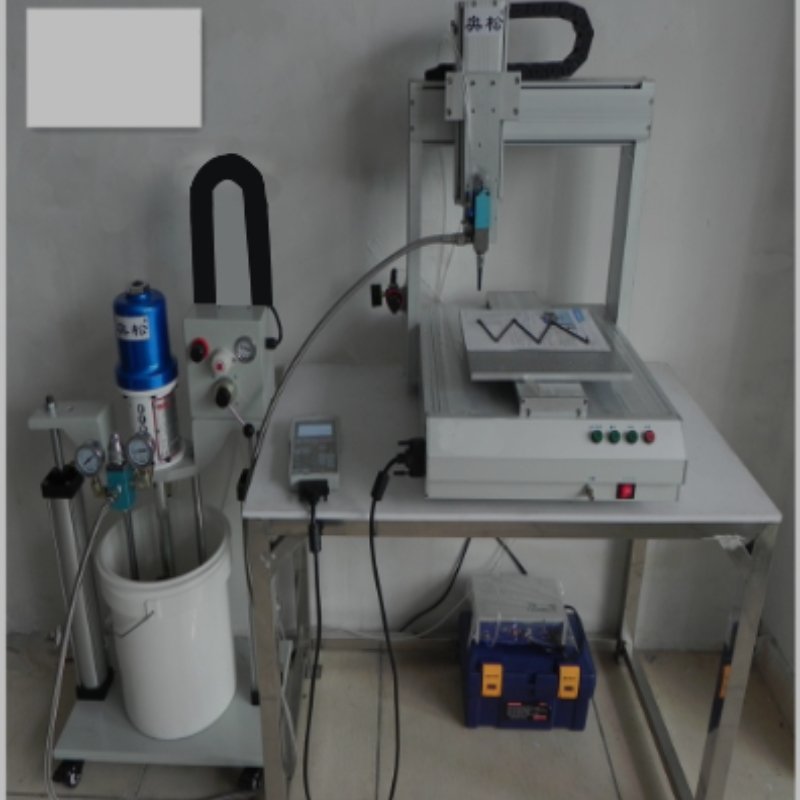

Automatic dispensing machine: Fully automated dispensers integrate into production lines and offer the highest levels of precision and efficiency. They use a robotic system to apply adhesive consistently and quickly, and are suitable for high-volume manufacturing environments such as the electronics or automotive industries.
Advantages:
——Consistency and precision: Automated systems deliver consistent amounts of adhesive, reducing variations in product quality.
——Automation allows for continuous operation without fatigue, significantly increasing production output.
——Precise application minimizes glue usage and reduces spillage or overflow, saving material and cleanup time.
Disadvantages:
-
The cost of a fully automated dispensing system may be prohibitive for smaller operations.
-
There is less flexibility, and changes in production processes may require extensive reprogramming or equipment adjustments.
Tips for use:
——Make sure the dispenser is properly calibrated for the type of adhesive and specific application.
——Clean the nozzle regularly and inspect the system for any signs of wear or malfunction.
——Match the type of adhesive to the dispenser and the materials to be bonded.
——Maintain a stable environment for dispensing. Temperature and humidity can affect the viscosity of the adhesive and its curing time, which can affect the quality of the application.
Conclusion
Through this article, we can understand that，choosing the right polyurethane adhesive coating method is crucial for achieving optimal performance in various applications. Each method, whether it involves spraying, curtain coating, or precise dispensing, has its unique set of capabilities designed to meet specific needs in manufacturing and assembly processes. The decision on which method to employ should be guided by factors such as the nature of the substrates, the required strength of the bond, the production volume, and the environmental conditions under which the application occurs.Additionally, using the correct type of adhesive for each specific application and ensuring that it is applied under optimal conditions can dramatically reduce waste and improve the overall quality of the finished product.
