Struggling with electronic failures due to harsh environments? Moisture, vibration, and thermal shock can damage sensitive components, leading to costly repairs and downtime. Polyurethane potting compounds provide a reliable protective barrier.

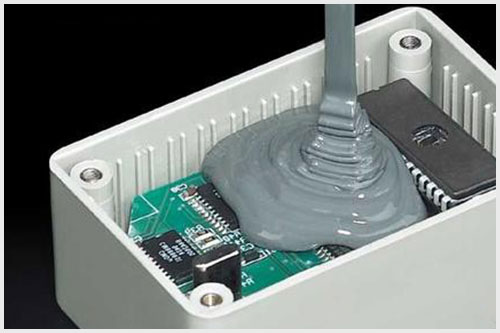

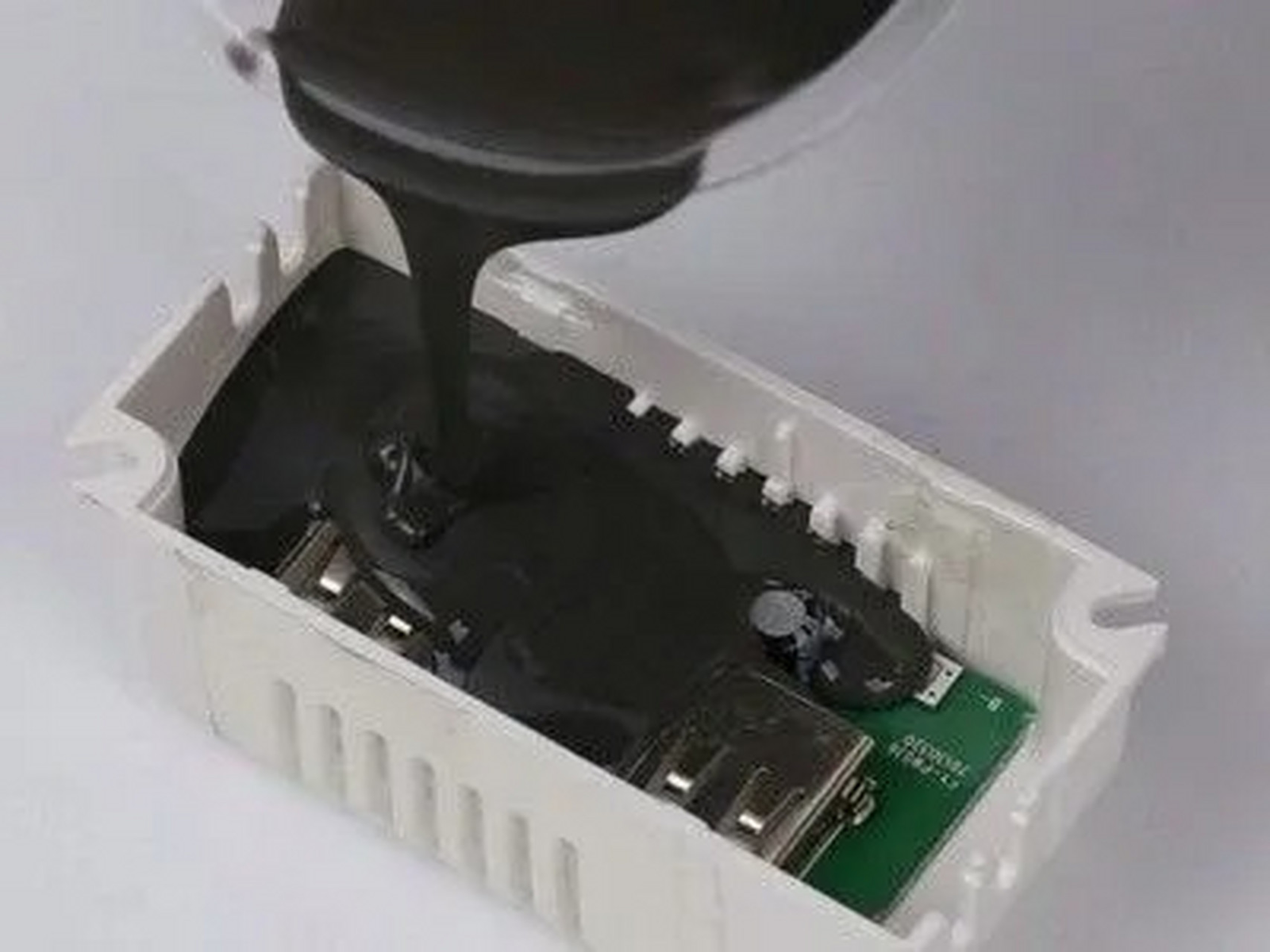

Polyurethane (PU) potting compounds are thermosetting polymers used to encapsulate and protect electronic circuits and components. They cure into a solid, durable material that shields against moisture, dust, chemicals, vibration, and physical impact, ensuring device reliability and longevity.
Understanding what polyurethane potting compounds are is the first step. Now, let’s delve deeper into why they are often the preferred choice and how to select the right one for your specific application needs, ensuring optimal protection for your valuable electronic assemblies.
Why Choose Polyurethane Over Other Potting Materials?
Confused by the different potting options like silicone and epoxy? Choosing the wrong material can compromise protection or increase costs unnecessarily. Polyurethane offers a unique blend of properties worth considering.
Polyurethane potting compounds often provide an excellent balance of flexibility, good adhesion to various substrates, abrasion resistance, and cost-effectiveness compared to silicones. They generally offer better flexibility and lower stress on components than many rigid epoxy systems.
Selecting the ideal potting material involves weighing the pros and cons based on application demands. Polyurethanes stand out in several areas, but understanding the trade-offs with silicones and epoxies is crucial.
Key Property Comparison
| Feature | Polyurethane (PU) | Silicone | Epoxy |
|---|---|---|---|
| Flexibility | Good to Excellent | Excellent | Poor to Fair (Typically Rigid) |
| Adhesion | Good (especially to plastics) | Moderate (Primer often needed) | Excellent (especially to metals) |
| Temp. Resistance | Moderate | Excellent (Wide range) | Good to Very Good |
| Moisture Resist. | Good to Excellent | Excellent | Very Good to Excellent |
| Abrasion Resist. | Excellent | Poor | Good |
| Cost | Moderate | Higher | Low to Moderate |
| Cure Exotherm | Low to Moderate | Low | Moderate to High |
Polyurethanes are particularly advantageous when flexibility is needed to accommodate vibration or thermal cycling, preventing stress on delicate components. Their strong adhesion to plastics and good abrasion resistance are also key benefits in many applications.
What Key Factors Determine the Right PU Potting Compound?
Overwhelmed by technical datasheets listing numerous properties? Selecting a compound without considering key factors can lead to application failure or processing difficulties. Focus on the critical parameters first.
The most critical factors include the operating temperature range, required hardness or flexibility (durometer), cure time and viscosity suitable for your production process, and the necessary dielectric properties for electrical insulation.
Choosing the right polyurethane potting compound requires matching the material’s properties to the specific demands of the electronic device and its operating environment. Let’s break down the essential considerations:
Operating Environment
Consider the maximum and minimum temperatures the device will experience. Will it be exposed to moisture, chemicals, or UV radiation? These factors dictate the required resistance properties of the cured compound.
Physical Properties
How much flexibility or rigidity is needed? Hardness (measured in Shore A or D) is crucial. Flexibility helps absorb vibration and thermal stress, while rigidity provides robust physical protection. Abrasion resistance might also be important.
Processing Requirements
Consider the pot life (working time) and cure time needed for your manufacturing workflow. Viscosity is critical – lower viscosity allows better flow into tight spaces, while higher viscosity prevents leakage before curing.
Electrical Needs
What level of electrical insulation is required? Key properties include dielectric strength (voltage resistance), dielectric constant, and volume resistivity. Ensure the compound meets the electrical insulation requirements of your circuit.
Where Are Polyurethane Potting Compounds Typically Used?
Wondering if polyurethane potting is suitable for your specific project? Its versatility makes it a popular choice across various industries. See where its protective qualities are most valued.
Polyurethane potting compounds are widely used to protect sensitive electronics in automotive modules, consumer devices, industrial control systems, sensors, transformers, capacitors, and power supplies due to their excellent environmental sealing and mechanical protection.
The unique combination of properties offered by polyurethanes makes them ideal for applications where components face environmental or mechanical stress.
Common Application Areas:
- Automotive Electronics: Protecting sensors, control units (ECUs), and lighting from vibration, moisture, and engine fluids.
- Consumer Electronics: Encapsulating components in white goods, power tools, and outdoor devices for moisture and impact resistance.
- Industrial Controls: Shielding PLCs, sensors, and power supplies in harsh factory environments from dust, chemicals, and moisture.
- LED Lighting: Potting drivers and modules for outdoor or damp location lighting fixtures.
- Power Supplies & Transformers: Providing electrical insulation and protection against vibration and environmental factors.
- Cable Joints & Connectors: Sealing and protecting electrical connections from moisture ingress.
Conclusion
Polyurethane potting compounds offer a versatile and effective solution for protecting sensitive electronics. By carefully considering application requirements and key material properties, you can select the ideal compound for reliable, long-lasting performance.
